M: Tarot 6S 380KV 4108 Multi-rotor

[tankister]

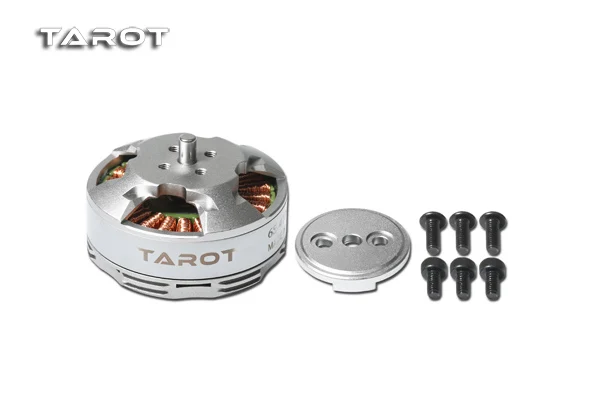

4 tk Tarot 6S 380KV 4108 Multi-rotor Disc Brushless Motor TL68P07 for RC Multicopter FPV



Specifications:
- Peripheral motor diameter: 46MM
- Stator diameter: 40.6M
- Stator Thickness: 8MM
- Stator: 24 slots
- Motor Poles: 22P
- Diameter: 0.23MM
- Gear shaft mounting diameter: ¢ 4MM
- Motor height: 24MM
- Motor shaft Full length: 32.50MM
- Per volt Speed: 380 RPM / Volt
- Motor Weight: 93G
- Motor resistance: 135 m
- Load Current: 0.5A
- Maximum thrust: 1620g

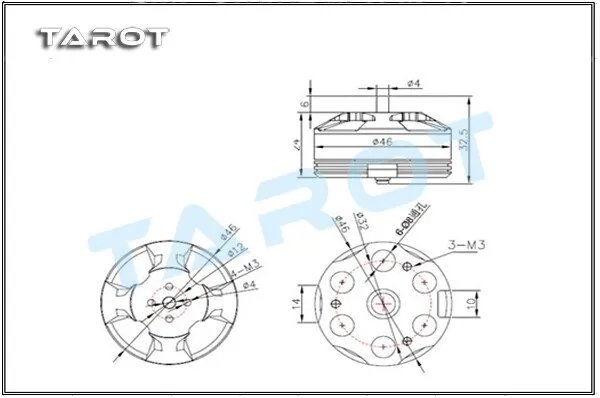

- 6S4108 brushless motor installation specifications: 27.7MM equilateral triangle
- Propeller installation specifications: the main hole diameter 4mm, side hole diameter 3mm, center distance 12mm



Normaalsed mootorid , kolm korda katsetasin. Kui vaja siis reguleeriad ja kõik muu ka saadaval.

Mootorid ise koos saatmisega 80 euri





https://ae01.alicdn.com/kf/HTB1Zw_xLpXX ... hash=64337

https://ae01.alicdn.com/kf/HTB1GU_rLpXX ... hash=38822

https://ae01.alicdn.com/kf/HTB1kjTDLpXX ... hash=99085
